$2,824.00 $3,618.00

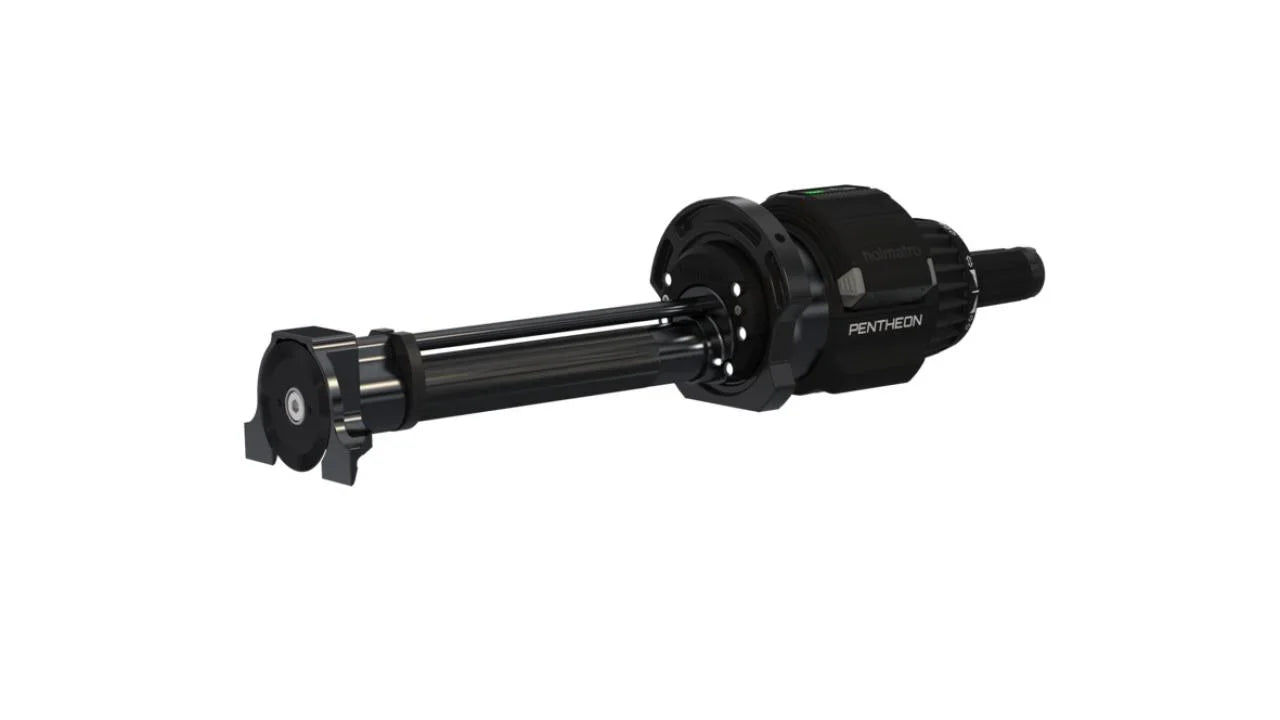

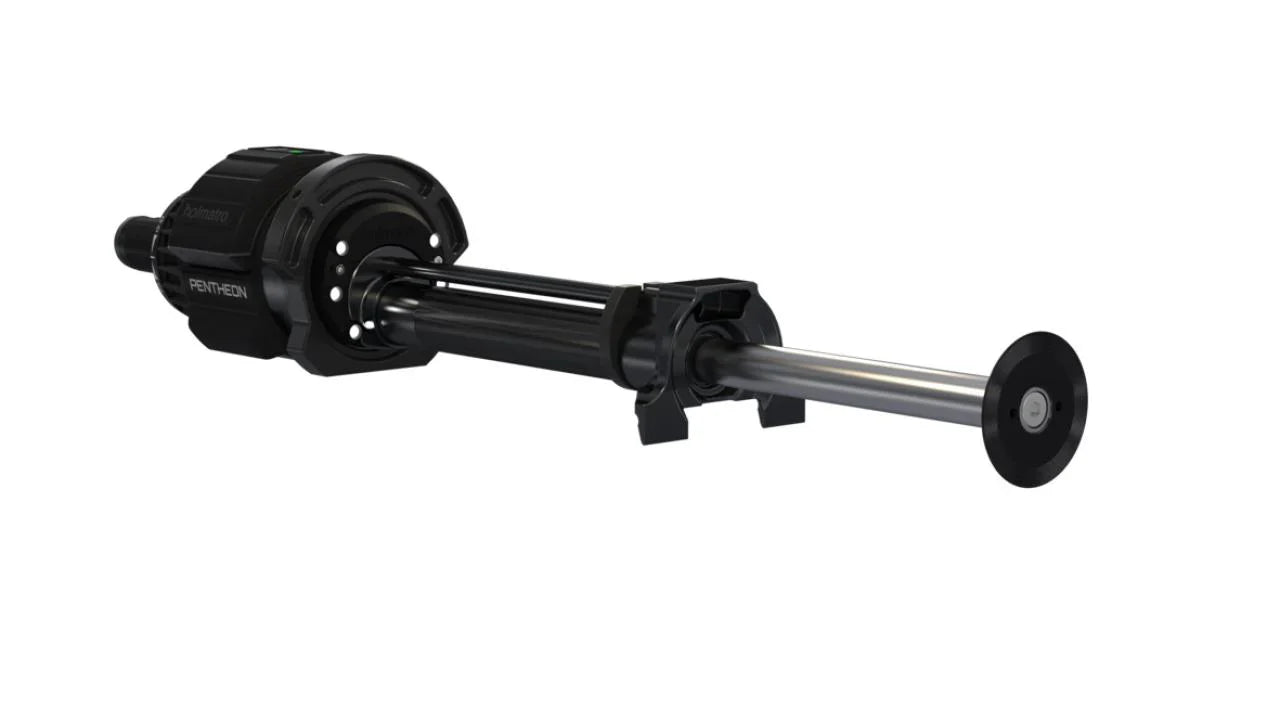

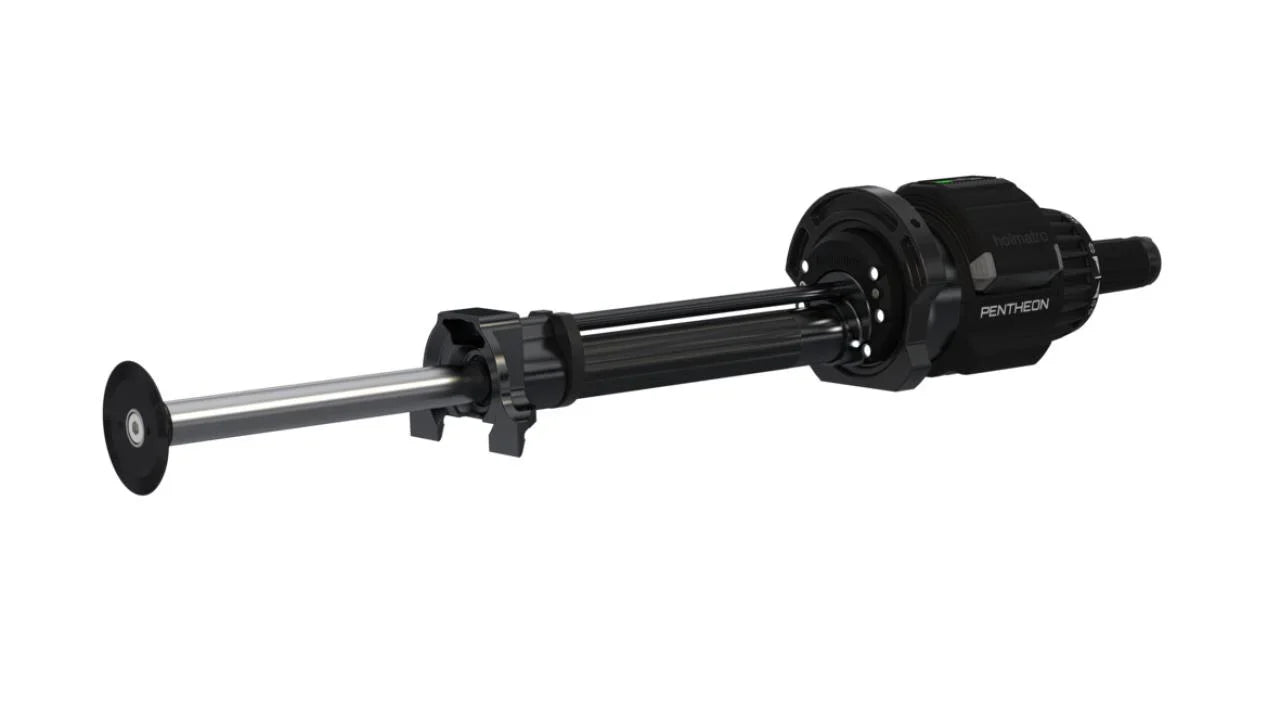

Door Ram PDR200

Battery-powered double-acting Pentheon door ram.

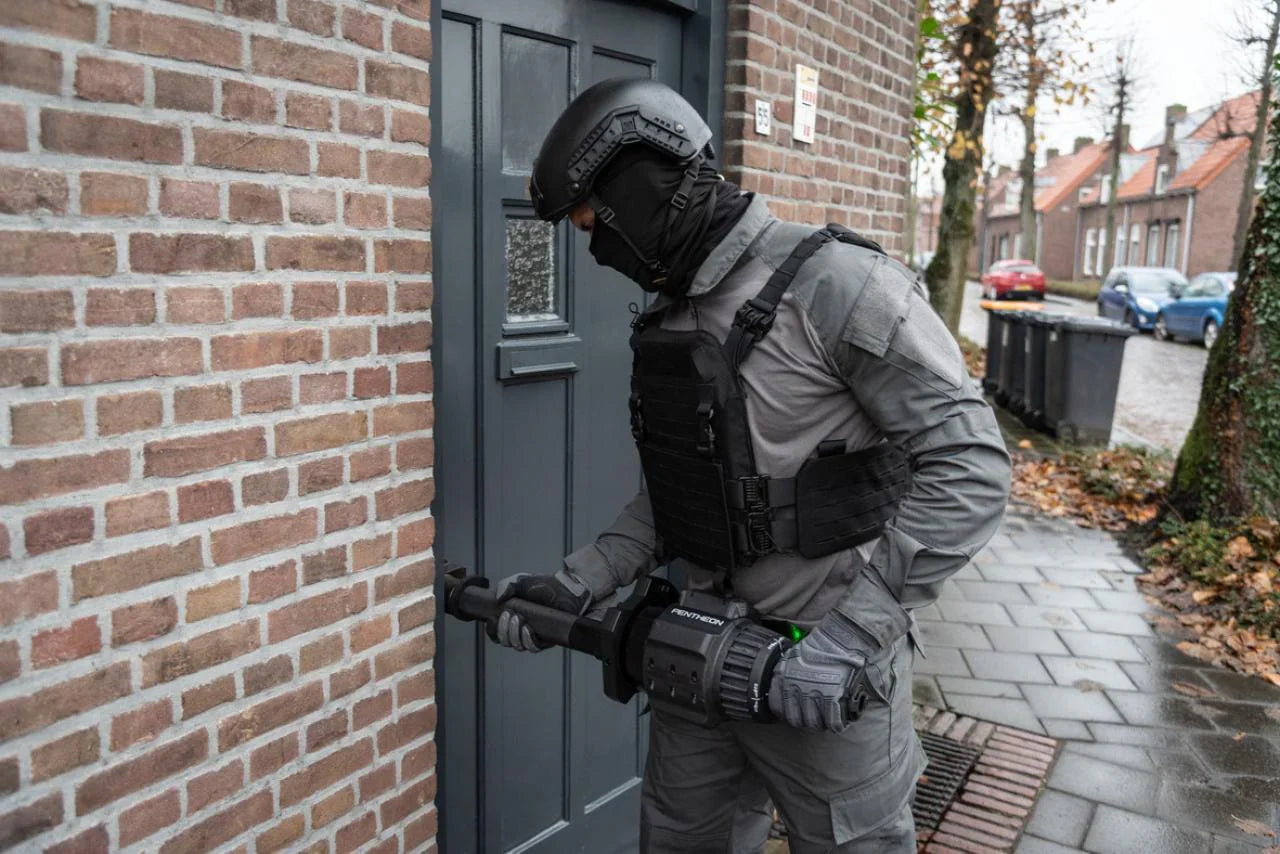

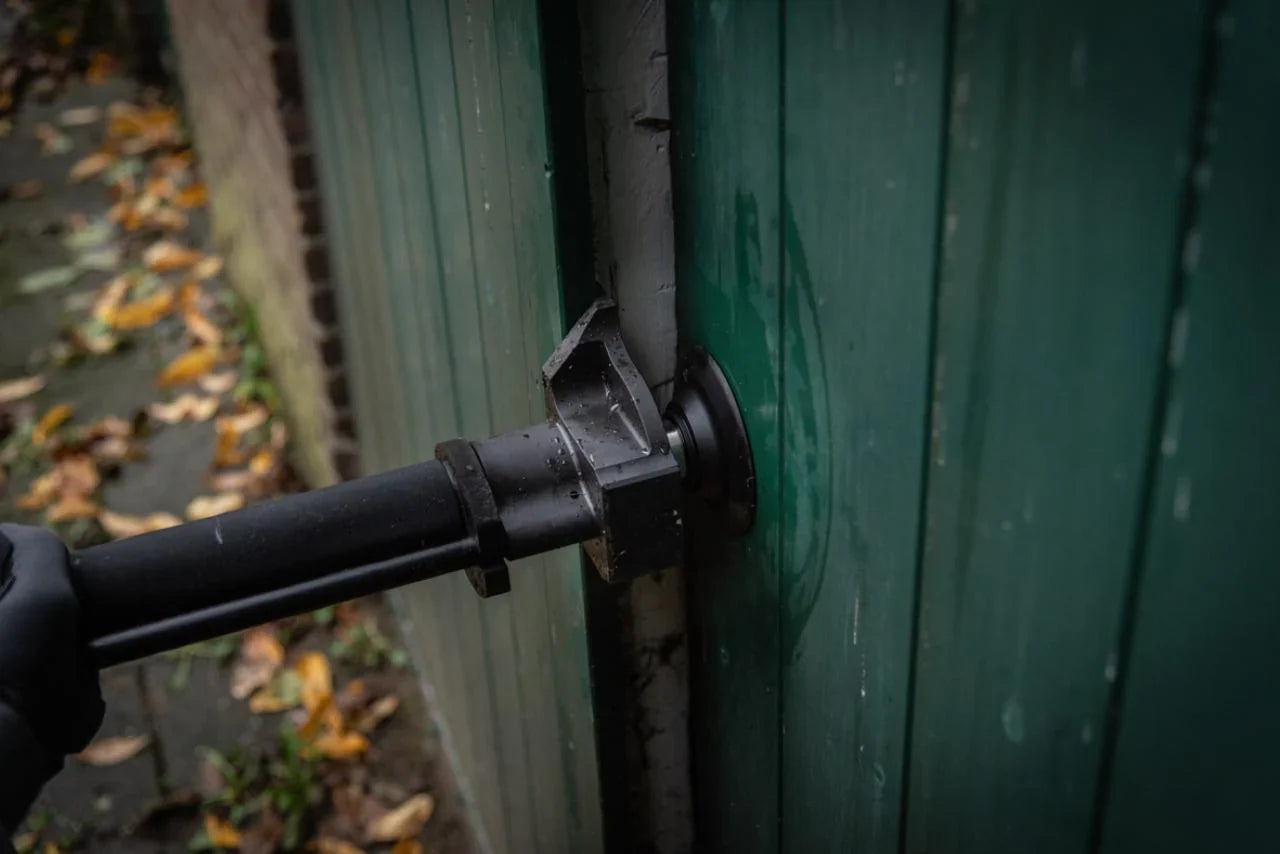

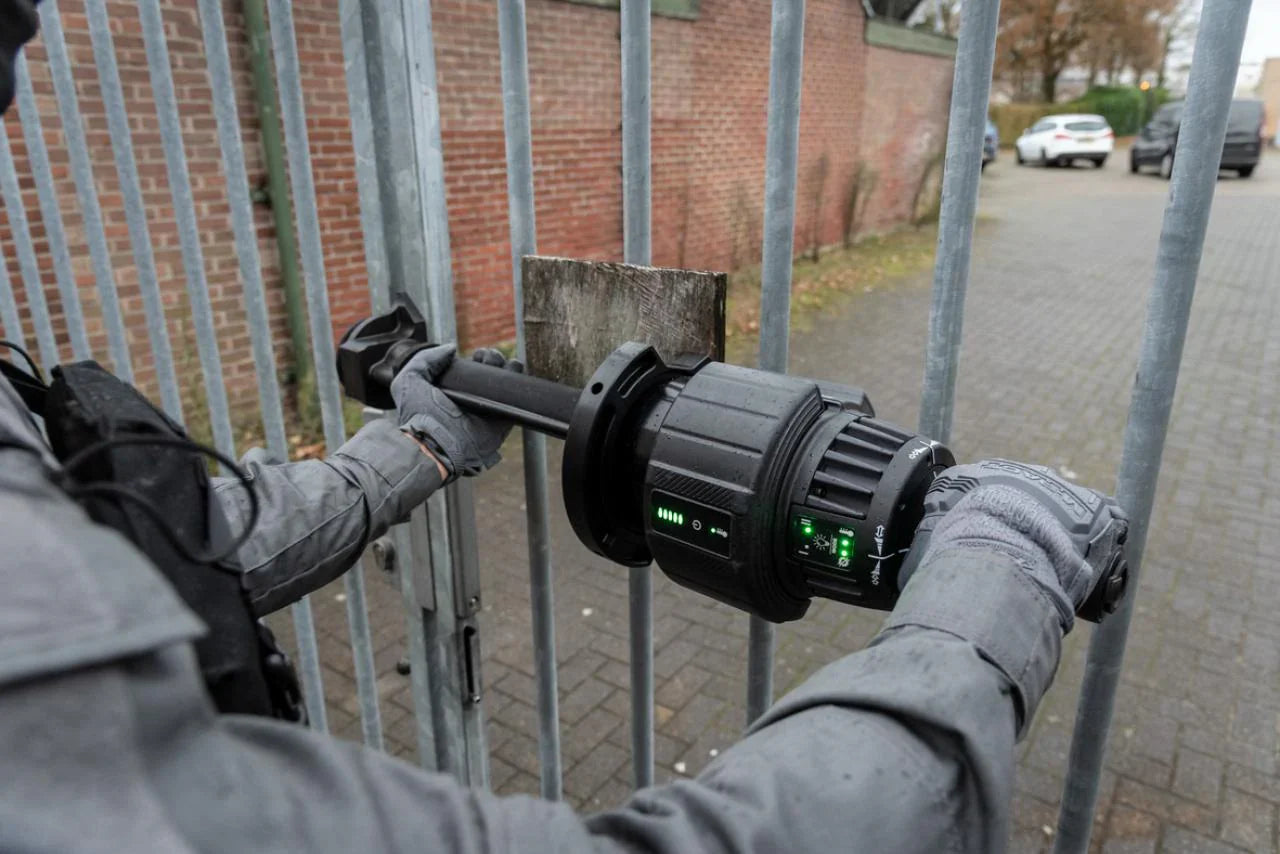

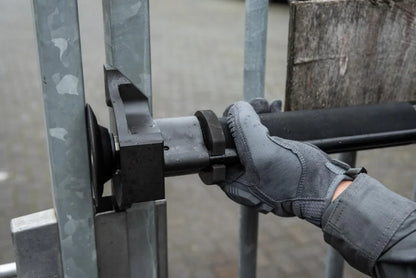

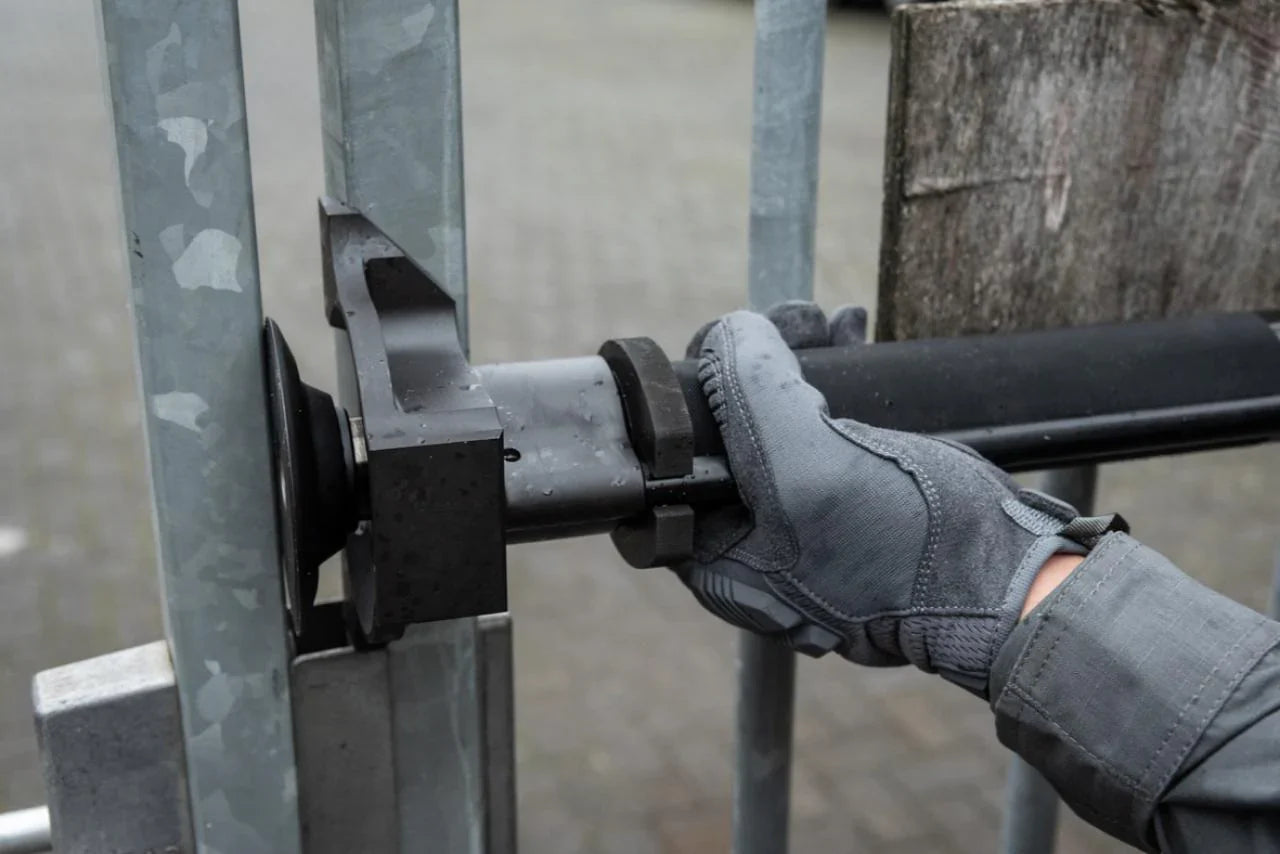

Designed for breaching inward opening doors with multiple locks. Also suitable for outward opening doors, when used in combination with a manual breaching tool.

Basic specifications
model	PDR200
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
battery included	yes
connectivity, mobile app	Bluetooth
Performance
spreading force over full stroke	71 / 7.2 (kN/t)	15961 lbf
spreading stroke	300 mm	11.8 in
retracted length	802 mm	31.6 in
extended length	1102 mm	43.4 in
protection rate	IP57
directives	2006/42/EC, 2014/30/EU
Dimensions, weight and temperature
weight (excl. battery)	12.6 kg	27.8 lb
dimensions (AxBxC)	180 x 802 x 196 mm	7.1 x 31.6 x 7.7 in
weight, ready for use (incl. battery)	14.2 kg	31.3 lb

The package contains:
1x Door Ram PDR200
1x Battery Charger PBCH3
2x Batteries
