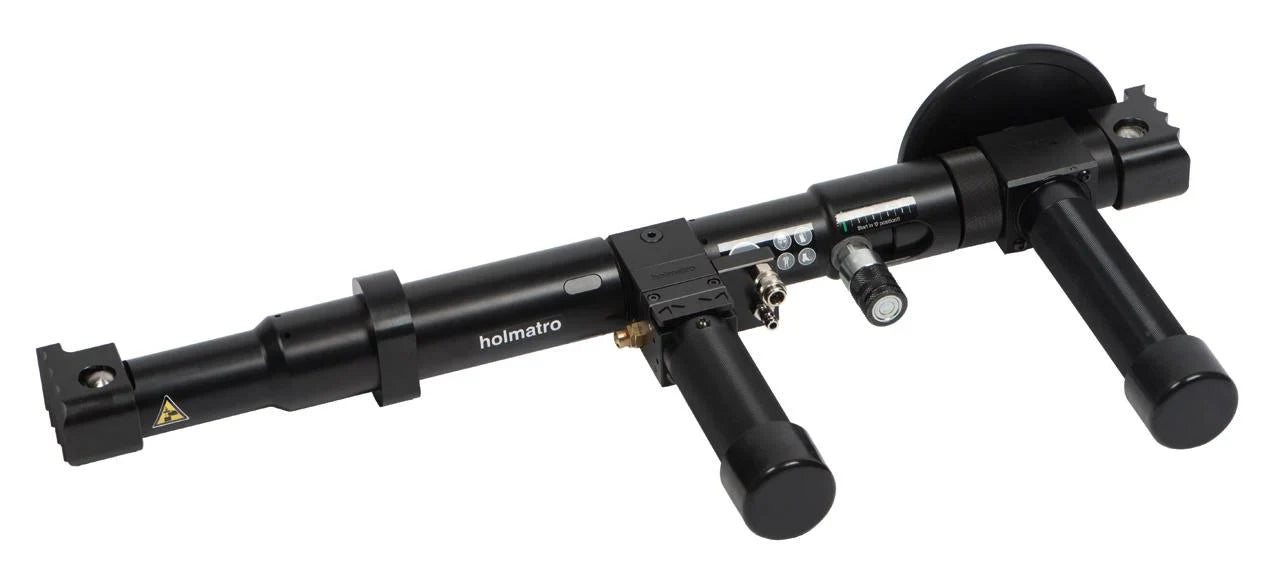

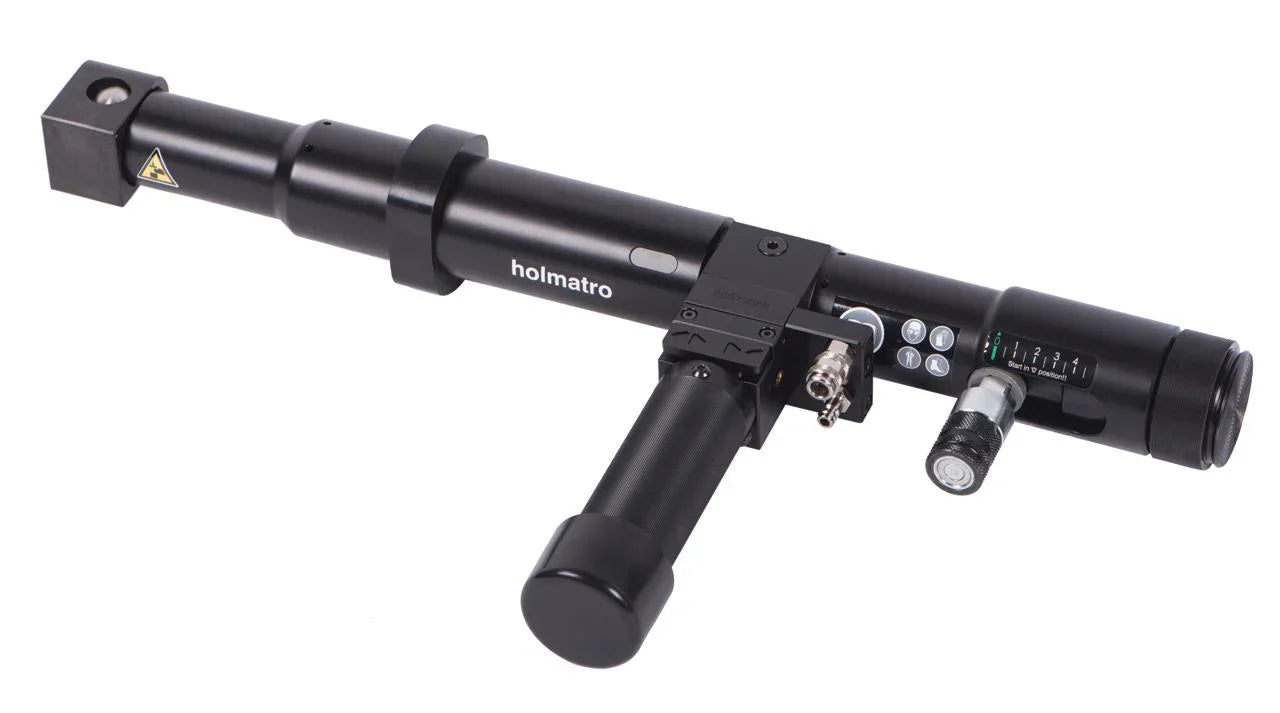

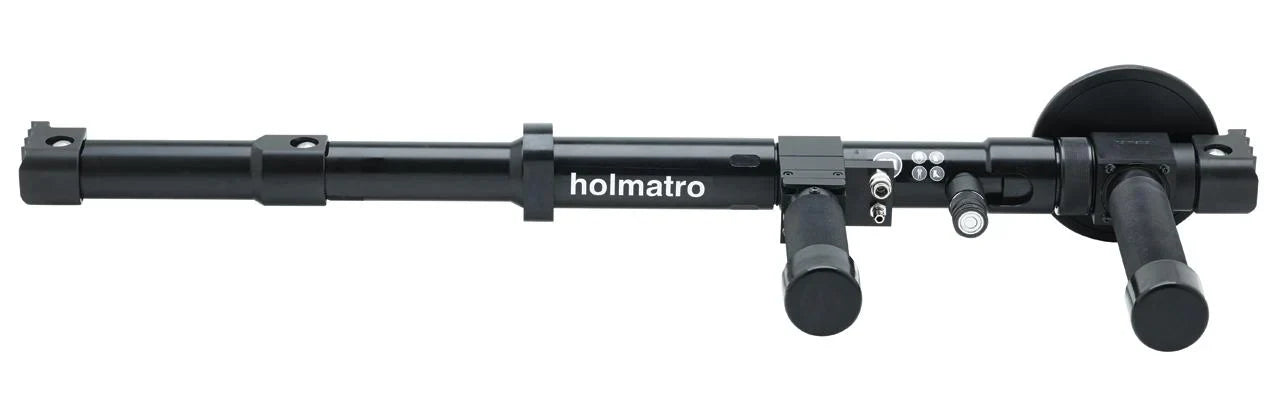

Door Blaster HDB 90 ST
Door opener for extremely fast door breaching. Designed for quiet and remote operation.
Powerful for high-resistance multiple-lock inward-opening doors
Extremely fast and quiet operation as fast as explosives without flying debris
Opens a door in seconds with pneumatic-hydraulic drive and no pump sound
Lightweight compact dimensions for one-person carrying installation and operation saving manpower
Push button on opener for quick quiet easy clamping into door frame
Remote operation via mounted control on 2 m hose or Wireless Control Set up to 100 m range for enhanced operator safety
| Basic specifications | ||
| model | HDB 90 ST | |
| max. working pressure | 720 / 72 (bar/Mpa) | 10443 psi |
| Performance | ||
| max. spreading force | 51 / 5.2 (kN/t) | 11465 lbf |
| spreading stroke | 40 mm | 1.6 in |
| max. length excl. extension pieces | 930 mm | 36.6 in |
| max. length incl. extension pieces | 1230 mm | 48.4 in |
| max. pushing force | 38 / 3.9 (kN/t) | 8543 lbf |
| Dimensions, weight and temperature | ||
| weight, ready for use | 10.8 kg | 23.8 lb |
| dimensions (AxBxC) | 760 x 300 x 85 mm | 29.9 x 11.8 x 3.3 in |
Standard supplied with:
- Round pushing plate DBP 12
- Rectangular pushing plate DBP 14
- Extension piece DBE 01
- Extension piece DBE 02
- Extension piece DBE 03
- Grip head DBH 21, set of 2
- Grip head DBH 23, set of 2
- Grip head DBH 24, set of 2

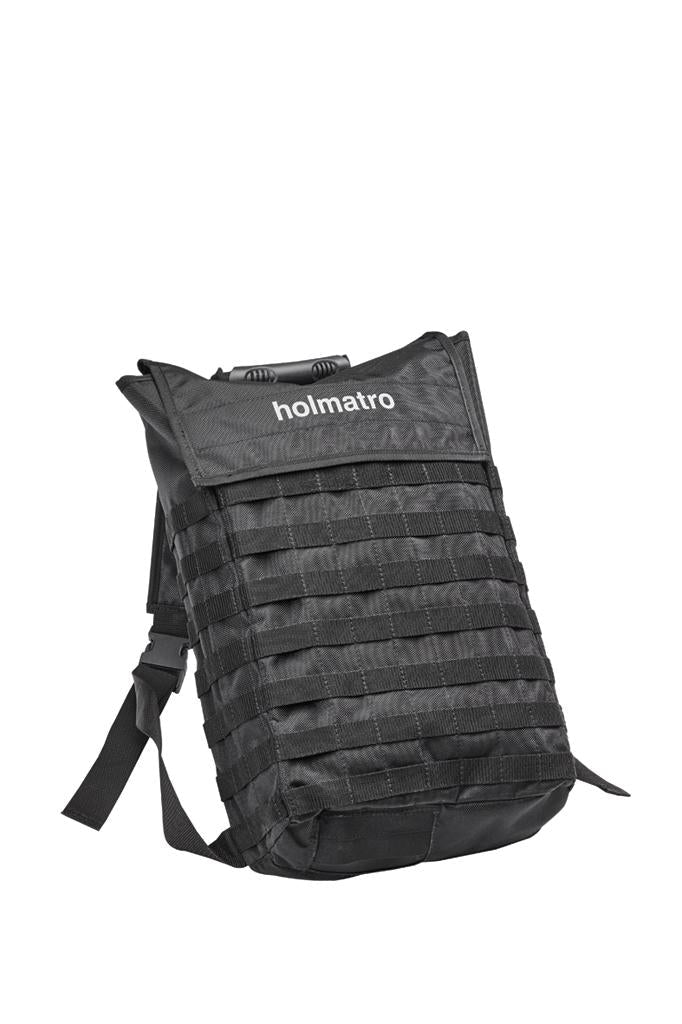

- Carrying / storage bag DBC 01

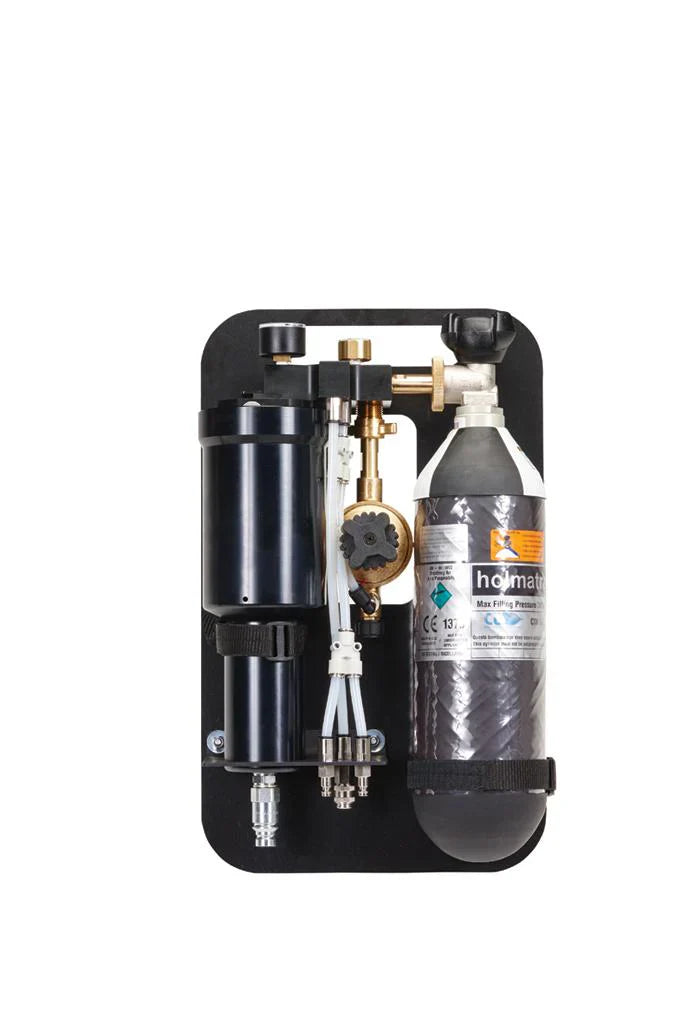

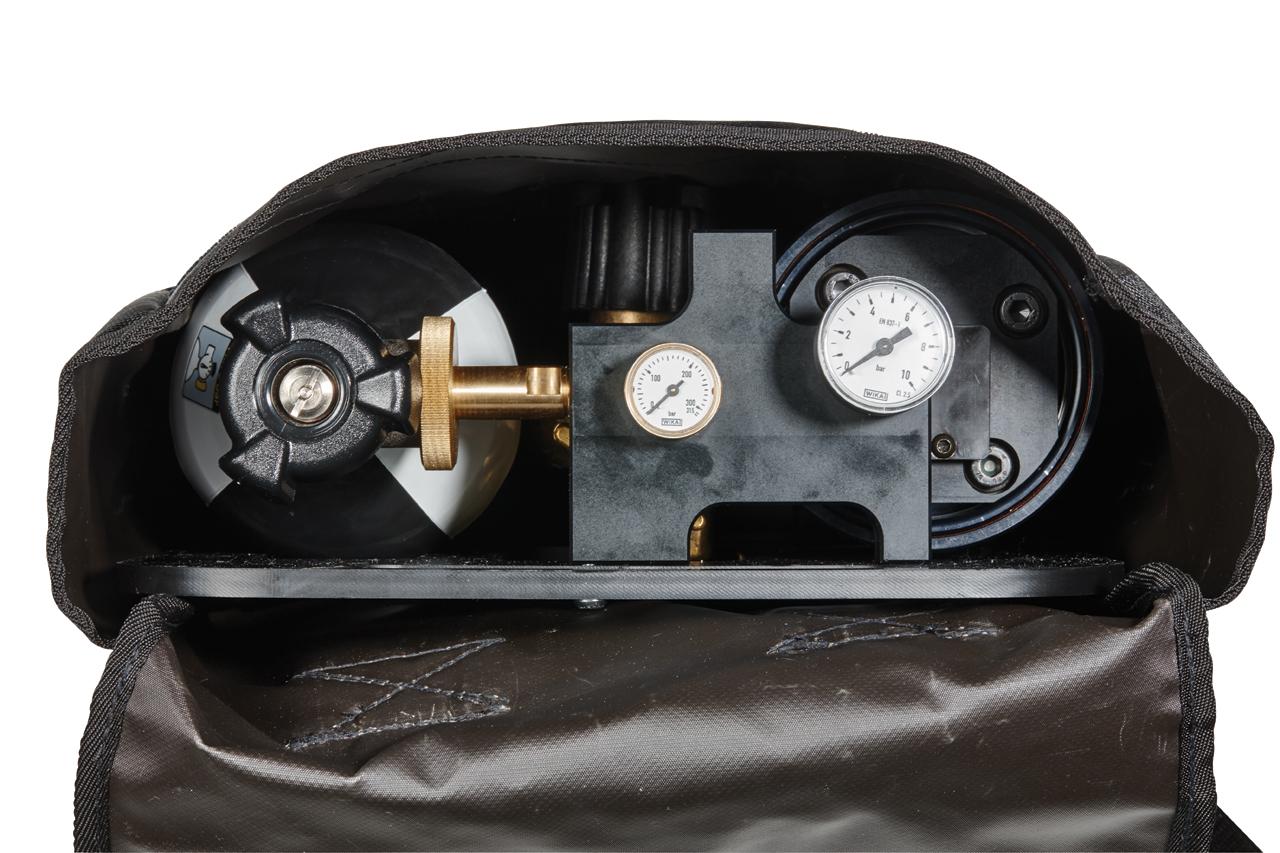

- Door Blaster Pack HDB P 240 ST
